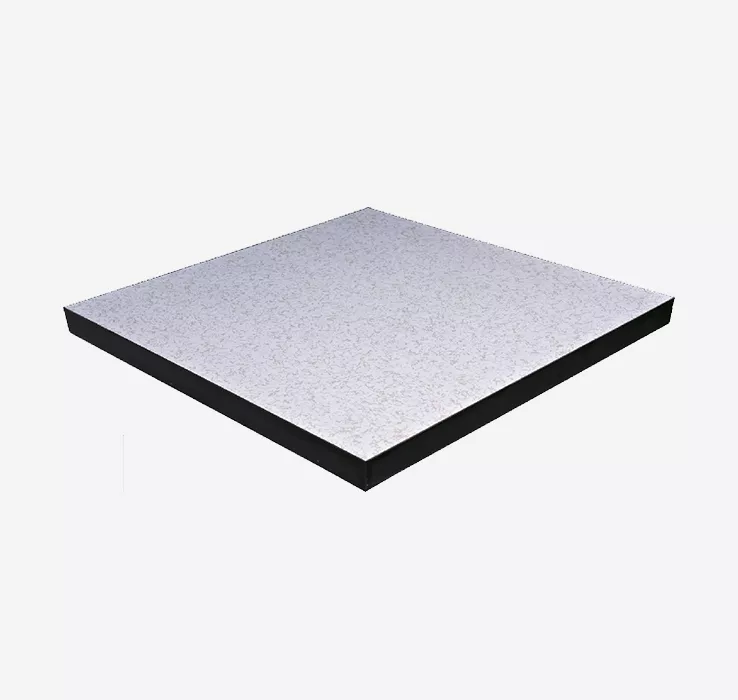

ABS SEALED PANEL >>>

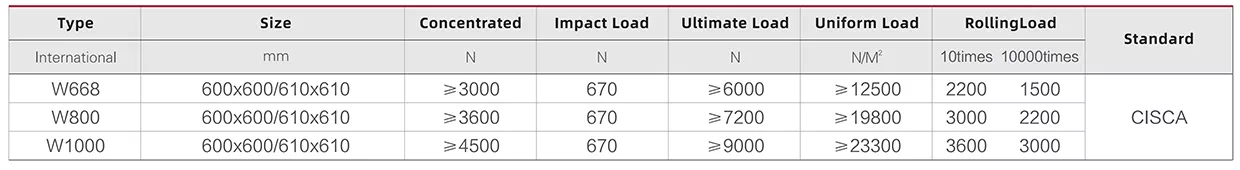

Product property
Panel weight : 5 -15kgs/pc
Panel thickness: 20-40mm
EN12825dimension tolerance: 2
EN1366-6 fire rating: 15minutes
EN ISO140-12 sound insulation: 50
Structure
Woodcore panel consists of high-density (720kg/m3) chipboard, panel surface can be laminated with HPL/ conductive PVC, bottom with high-quality galvanized steel, four sides with ABS sealing.
ENCAPSULATED PANEL >>>

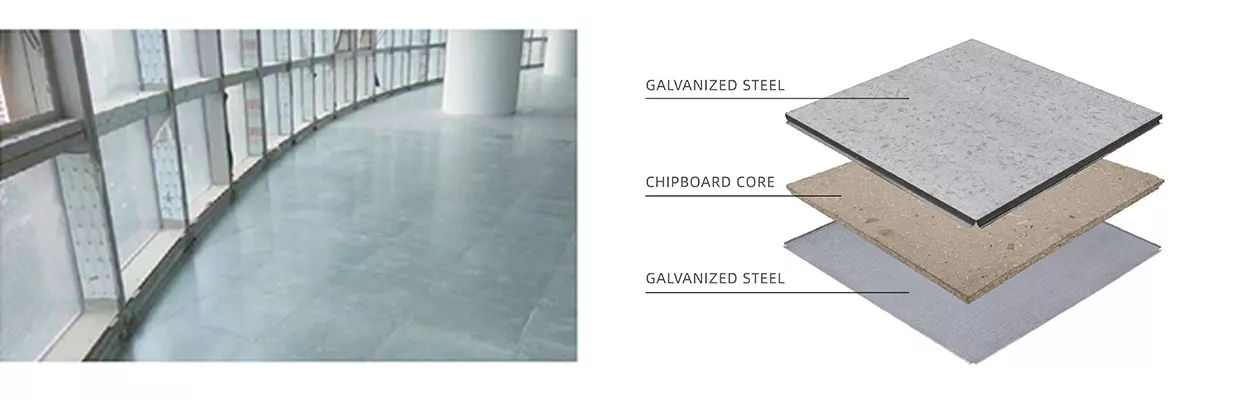

Structure
High density chipboard core wrapped with
high-quality galvanized steel.
