Product property

Panel weight : 12 -22kgs/pc ASTM E136-11: Non combustible BS476-4: Non combustible ASTM E84-14: Class A EN13501: Class A1 ASTM E492-09: IIC58 ASTM E283-04 25Pa:≦0.3L/s·m2 NIOSH9002: Asbestos-free LEED assessment report available

Structure

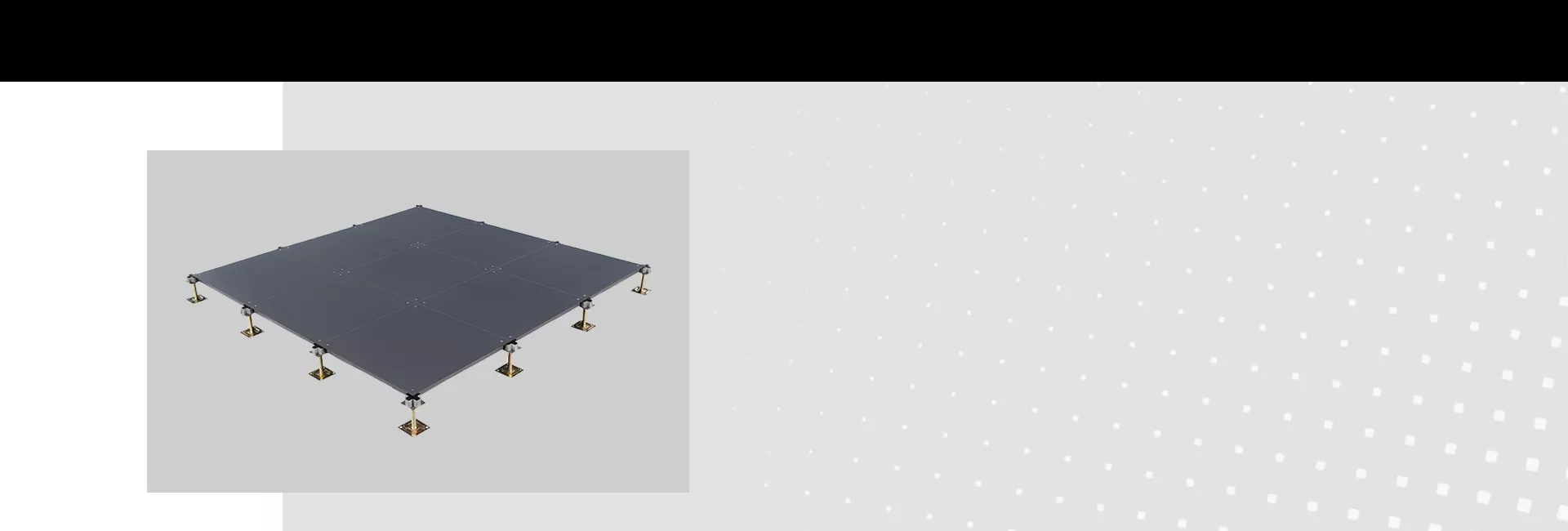

ZT60 OA panel is made of steel plate, top SPCC steel, bottom ST14 steel, after pan formed and joined together by resistance welding, the panel is coated with epoxy paint, then infilled with light cement.
