Encapsulated panel

Structure

Encapsulated with high density fiber calcium sulphate core

ABS sealed panel

Structure

With high density calcium sulphate core, panel surface can be laminated with HPL, conductive PVC, bottom with quality galvanized steel/ aluminum foil, four sides with conductive ABS edging.

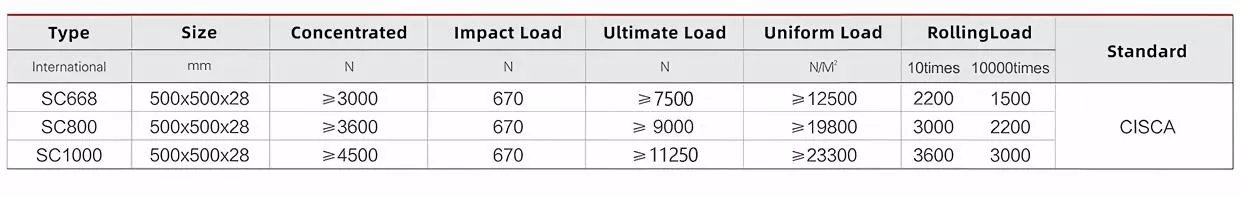

Product property

Panel size: 500x500mm, 600x600mm

Panel thickness: 25-40mm

EN12825 dimension tolerance: 1

EN13501: Class A1

EN1366-6 fire rating: 2hours

ASTM E492-09: IIC55

ASTM E283-04 25Pa: ≤0.3L/s.m2

NIOSH9002: Asbestos-free

QBIT 2591-2003: Antibacterial

LEED assessment report available
